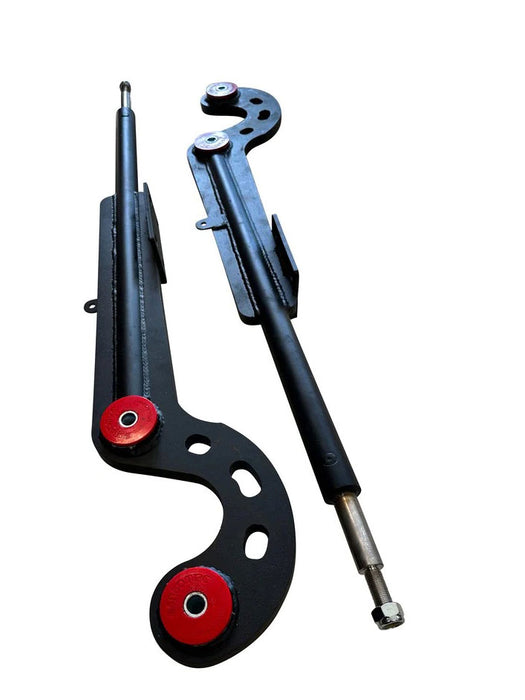

Lift Radius Arm Kit for Mercedes G-Wagon W463 G500, G55, G63, G65

SKU:

  • Sale
  • $2,199

Is your G-Wagen lifted? Do you feel the handling is not the way it was before, and at times uncontrollable at higher speeds?

There unfortunately are no factory adjustments on the front axle that would fix this.

This Lift Radius Arm is designed to greatly improve the handling of your G-Wagon when lifted, and offers a vast improvement compared to the stock specifications.



On shorter lifts we make them a custom length to avoid tire rubbing on front bumper and on bigger lifts with Portal axles equipped.

Sway bar mounts are welded on and also built in headlight level brackets which aren't found on our competitors arms.
We've decreased the radius chassis mount angle to make installation easier and reduces the stress on the Radius arm under extreme conditions.
100% built in USA with a heavy duty black powder coat finish and limited lifetime warranty.

These Radius arms will add up to +5 degrees caster adjustment on 4 inch lifts.

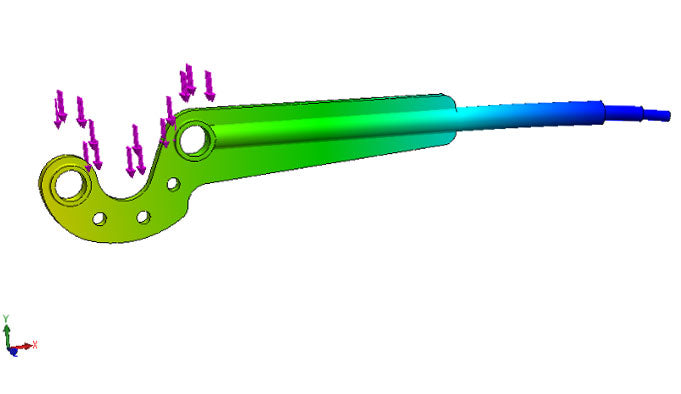

These arms have been engineered and gone through intense trail testing in and off road conditions. We back our product with a lifetime warranty. We've also tested them through solid works stress simulations to certify strength and engineering designs are flawless.We overbuilt our radius arms using 3/4 inch thick steel plates!



Lift Radius Arm Kit will fit the following vehicles:

2002 - 2018 G500, G550, G55, G63 and G65

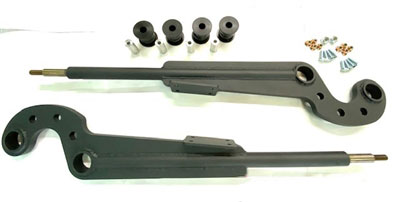

Kit includes:

2 x Radius Arms
4 x heavy duty polyurethane axle bushings
2 x replacement mounting hardware kit

Lifetime warranty on craftsmanship!
